C65-THINNUT

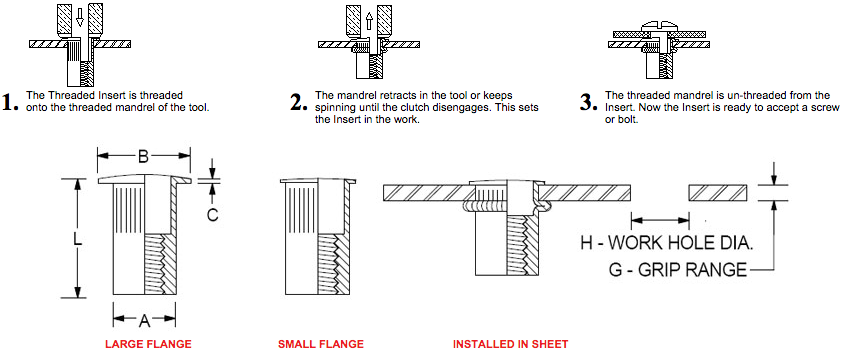

在安装过程中，本体折叠在背面，抓住安装表面的内侧。

  • 系在盲孔里
  • 很薄的法兰或头部
  • 阀体有滚花防止旋转
  • 广泛的抓地力范围适用于金属和其他材料
  • 手动或气动工具易于安装

屏幕截图2016-01-21下午3:16.27

法兰 线程
大小		 钢
黄锌
零件号		 铝
零件号		 不锈钢
300系列
零件号		 控制
范围		 身体
直径
(MAX)。		 法兰
直径		 法兰
高度		 长度 参考 工作的孔
直径
”G” ”一个” ”B” ”C” ”l” ”E” ”H”

大
法兰

 6-32 skl6 - 32 - 80 akl6 - 32 - 80 sskl6 - 32 - 80 .020 -.080 .265 .390 .030 .420 .305 .266
skl6 - 32 - 130 akl6 - 32 - 130 sskl6 - 32 - 130 .080 -.130 .265 .390 .030 .470 .305 .266
8-32 skl8 - 32 - 80 akl8 - 32 - 80 sskl8 - 32 - 80 .020 -.080 .265 .390 .030 .420 .305 .266
skl8 - 32 - 130 akl8 - 32 - 130 sskl8 - 32 - 130 .080 -.130 .265 .390 .030 .470 .305 .266
10 - 24 skl10 - 24 - 130 akl10 - 24 - 130 sskl10 - 24 - 130 .020 -.130 .296 .415 .030 .475 .315 率
skl10 - 24 - 225 akl10 - 24 - 225 sskl10 - 24 - 225 .130 -.225 .296 .415 .030 .585 .315 率
10-32 skl10 - 32 - 130 akl10 - 32 - 130 sskl10 - 32 - 130 .020 -.130 .296 .415 .030 .475 .315 率
skl10 - 32 - 225 akl10 - 32 - 225 sskl10 - 32 - 225 .130 -.225 .296 .415 .030 .585 .315 率
线 skl250 - 20 - 165 akl250 - 20 - 165 SSKL250-20-165 .030 -.165 .390 的胜率 .030 .580 .380 .391
skl250 - 20 - 260 akl250 - 20 - 260 sskl250 - 20 - 260 .165 -.260 .390 的胜率 .030 .680 .380 .391
1/4-28 skl250 - 28 - 165 akl250 - 28 - 165 sskl250 - 28 - 165 .027 -.165 .390 的胜率 .030 .580 .380 .391
skl250 - 28 - 260 akl250 - 28 - 260 sskl250 - 28 - 260 .165 -.260 .390 的胜率 .030 .680 .380 .391
5/16-18 skl312 - 18 - 150 akl312 - 18 - 150 sskl312 - 18 - 150 .030 -.150 .530 .685 .035 .690 .470 .531
skl312 - 18 - 312 akl312 - 18 - 312 sskl312 - 18 - 312 .150 -.312 .530 .685 .035 .805 .425 .531
5/16-24 skl312 - 24 - 150 akl312 - 24 - 150 sskl312 - 24 - 150 .027 -.150 .530 .685 .035 .690 .470 .531
skl312 - 24 - 312 akl312 - 24 - 312 sskl312 - 24 - 312 .150 -.312 .530 .685 .035 .805 .425 .531
3/8-16 skl375 - 16 - 150 akl375 - 16 - 150 sskl375 - 16 - 150 .030 -.150 .530 .685 .035 .690 .470 .531
skl375 - 16 - 312 akl375 - 16 - 312 sskl375 - 16 - 312 .150 -.312 .530 .685 .035 .805 .425 .531
3/8-24 skl375 - 24 - 150 akl375 - 24 - 150 sskl375 - 24 - 150 .027 -.150 .530 .685 .035 .690 .470 .531
skl375 - 24 - 312 akl375 - 24 - 312 sskl375 - 24 - 312 .150 -.312 .530 .685 .035 .805 .425 .531
1/2-13 skl500 - 13 - 200 akl500 - 13 - 200 sskl500 - 13 - 200 .063 -.200 .685 .865 .047 1.150 .850 .688
skl500 - 13 - 350 akl500 - 13 - 350 sskl500 - 13 - 350 .200 -.350 .685 .865 .047 1.300 .850 .688
skl500 - 13 - 500 akl500 - 13 - 500 sskl500 - 13 - 500 .350胜率 .685 .865 .047 1.450 .860 .688
M4 .70 sklm4 2.0 - 70 aklm4 2.0 - 70 ssklm4 2.0 - 70 50 - 2.00 6.73 9.91 .76 10.67 7.75 6.8
sklm4 3.3 - 70 aklm4 3.3 - 70 ssklm4 3.3 - 70 2.00 - -3.30 6.73 9.91 .76 11.94 7.75 6.8
M5 .80 sklm5 3.3 - 80 aklm5 3.3 - 80 ssklm5 3.3 - 80 50 - 3.30 7.52 10.54 .76 12.07 8.00 7.6
sklm5 5.7 - 80 aklm5 5.7 - 80 ssklm5 5.7 - 80 3.30 - -5.70 7.52 10.54 .76 14.86 8.00 7.6
m6 - 1.0 sklm6 - 10 - 4.2 aklm6 - 10 - 4.2 ssklm6 - 10 - 4.2 2 - 4.20 9.91 12.70 .76 14.73 9.65 10.0
sklm6 - 10 - 6.6 aklm6 - 10 - 6.6 ssklm6 - 10 - 6.6 4.20 - -6.60 9.91 12.70 .76 17.27 9.65 10.0
m8 - 1.25 sklm81 3.8 - 25 aklm81 3.8 - 25 ssklm81 3.8 - 25 2 - 3.80 13.46 17.40 .89 17.53 11.94 13.5
sklm81 7.9 - 25 aklm81 7.9 - 25 ssklm81 7.9 - 25 3.80 - -7.90 13.46 17.40 .89 20.45 10.80 13.5
m10 - 1.5 sklm10 - 15 - 3.8 aklm10 - 15 - 3.8 ssklm10 - 15 - 3.8 2 - 3.80 13.46 17.40 .89 17.53 11.94 13.5
sklm10 - 15 - 7.9 aklm10 - 15 - 7.9 ssklm10 - 15 - 7.9 3.80 - -7.90 13.46 17.40 .89 20.45 10.80 13.5

小
法兰

 6-32 sks6 - 32 - 80 aks6 - 32 - 80 ssks6 - 32 - 80 .020 -.080 .265 .310 .019 .420 .305 .266
sks6 - 32 - 130 aks6 - 32 - 130 ssks6 - 32 - 130 .080 -.130 .265 .310 .019 .470 .305 .266
8-32 sks8 - 32 - 80 aks8 - 32 - 80 ssks8 - 32 - 80 .020 -.080 .265 .310 .019 .420 .305 .266
sks8 - 32 - 130 aks8 - 32 - 130 ssks8 - 32 - 130 .080 -.130 .265 .310 .019 .470 .305 .266
10 - 24 sks10 - 24 - 130 aks10 - 24 - 130 ssks10 - 24 - 130 .020 -.130 .296 .340 .019 .475 .315 率
sks10 - 24 - 225 aks10 - 24 - 225 ssks10 - 24 - 225 .130 -.225 .296 .340 .020 .585 .315 率
10-32 sks10 - 32 - 130 aks10 - 32 - 130 ssks10 - 32 - 130 .020 -.130 .296 .340 .019 .475 .315 率
sks10 - 32 - 225 aks10 - 32 - 225 ssks10 - 32 - 225 .130 -.225 .296 .340 .019 .585 .315 率
线 sks250 - 20 - 165 aks250 - 20 - 165 ssks250 - 20 - 165 .030 -.165 .390 .455 .022 .580 .380 .391
sks250 - 20 - 260 aks250 - 20 - 260 ssks250 - 20 - 260 .165 -.260 .390 .455 .022 .680 .380 .391
1/4-28 sks250 - 28 - 165 aks250 - 28 - 165 ssks250 - 28 - 165 .027 -.165 .390 .455 .022 .580 .380 .391
sks250 - 28 - 260 aks250 - 28 - 260 ssks250 - 28 - 260 .165 -.260 .390 .455 .022 .680 .380 .391
5/16-18 sks312 - 18 - 150 aks312 - 18 - 150 ssks312 - 18 - 150 .030 -.150 .530 .595 .022 .690 .470 .531
sks312 - 18 - 312 aks312 - 18 - 312 ssks312 - 18 - 312 .150 -.312 .530 .595 .022 .805 .425 .531
5/16-24 sks312 - 24 - 150 aks312 - 24 - 150 ssks312 - 24 - 150 .027 -.150 .530 .595 .022 .690 .470 .531
sks312 - 24 - 312 aks312 - 24 - 312 ssks312 - 24 - 312 .150 -.312 .530 .595 .022 .805 .425 .531
3/8-16 sks375 - 16 - 150 aks375 - 16 - 150 ssks375 - 16 - 150 .030 -.150 .530 .595 .022 .690 .470 .531
sks375 - 16 - 312 aks375 - 16 - 312 ssks375 - 16 - 312 .150 -.312 .530 .595 .022 .805 .425 .531
3/8-24 sks375 - 24 - 150 aks375 - 24 - 150 ssks375 - 24 - 150 .027 -.150 .530 .595 .022 .690 .470 .531
sks375 - 24 - 312 aks375 - 24 - 312 ssks375 - 24 - 312 .150 -.312 .530 .595 .022 .805 .425 .531
M4 .70 sksm4 2.0 - 70 aksm4 2.0 - 70 ssksm4 2.0 - 70 50 - 2.00 6.73 7.87 的相关性 10.67 7.75 6.8
sksm4 3.3 - 70 aksm4 3.3 - 70 ssksm4 3.3 - 70 2.00 - -3.30 6.73 7.87 的相关性 11.94 7.75 6.8
M5 .80 sksm5 3.3 - 80 aksm5 3.3 - 80 ssksm5 3.3 - 80 50 - 3.30 7.52 8.64 的相关性 12.04 8.00 7.6
sksm5 5.7 - 80 aksm5 5.7 - 80 ssksm5 5.7 - 80 3.30 - -5.70 7.52 8.64 的相关性 14.86 8.00 7.6
m6 - 1.0 sksm6 - 10 - 4.2 aksm6 - 10 - 4.2 ssksm6 - 10 - 4.2 2 - 4.20 9.91 11.56 55 14.73 9.65 10.0
sksm6 - 10 - 6.6 aksm6 - 10 - 6.6 ssksm6 - 10 - 6.6 4.20 - -6.60 9.91 11.56 55 17.27 9.65 10.0
m8 - 1.25 sksm81 3.8 - 25 aksm81 3.8 - 25 ssksm81 3.8 - 25 2 - 3.80 13.46 15.11 55 17.53 11.94 13.5
sksm81 7.9 - 25 aksm81 7.9 - 25 ssksm81 7.9 - 25 3.80 - -7.90 13.46 15.11 55 20.45 10.80 13.5
m10 - 1.5 sksm10 - 15 - 3.8 aksm10 - 15 - 3.8 ssksm10 - 15 - 3.8 2 - 3.80 13.46 15.11 55 17.53 11.94 13.5
sksm10 - 15 - 7.9 aksm10 - 15 - 7.9 ssksm10 - 15 - 7.9 3.80 - -7.90 13.46 15.11 55 20.45 10.80 13.5

注:有些尺寸可选蒙乃尔
