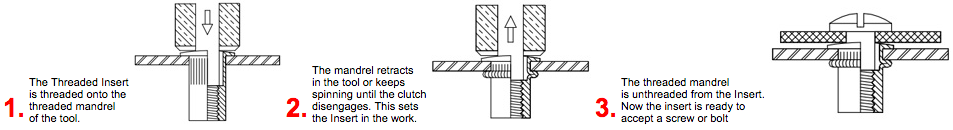

在安装过程中，主体在背面上塌陷，夹持安装表面的内部。

  • 盲孔-从一侧安装
  • 将线程添加到薄纸上
  • 厚壁设计，最大强度
  • 使用手动或电动工具安装轻松安装

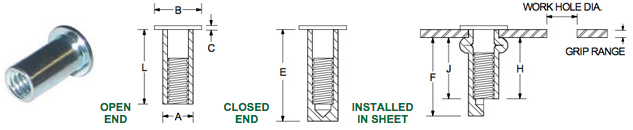

屏幕截图2016-01-21在下午3点08.08

线
尺寸		 基本
部分
数*		 控制
范围
“G“		 身体
直径
“一种“		 头
直径
“B.“		 头
高度
“C“		 开放端 结束了 工作
孔
直径		 钻
尺寸
长度
“L.“		 参考。
“H“		 长度
“E.“		 参考。
“F“		 参考。
“j“

4-40

 4-60 .010-.060 .155 .270 .025 .345 .230 .500 .385 .230 .155 / .157 5/32
4-85 .060-.085 .370 .230 .525 .385 .230
4-110 .085-.110 .400 .230 .555 .390 .230
4 - 135 .110-.135 .425 .230 .580 .385 .230
4 - 160 .135-.160 .450 .230 .605 .385 .230
4-185 .160全 .480 .230 .635 .385 .230

6-32

 6 - 75 .010-.075 .189 .325 .032 .438 .300 .625 .490 .405 .189 / .193 ＃12
6-120 .075-.120 .500 .315 .625 .440 .355
6 - 160 .120-.160 .500 .270 .750 .520 .310
6-200 .160-.200 .562 .290 .750 .480 .260
6-240 .200-.240 .625 .310 .750 .435 .260
6 - 280 本场比赛-.280 .687 .330 .812 .455 .265

8-32

 8-75 .010-.075 .221 .357 .032 .438 .300 .625 .490 .405 .221 / .226 ＃2
8-120 .075-.120 .500 .315 .625 .440 .355
8-160 .120-.160 .500 .270 .750 .520 .310
8-200 .160-.200 .625 .350 .750 .475 .265
8-240 .200-.240 .625 .305 .875 .555 .310
8-280 本场比赛-.280 .687 .340 .875 .530 .290

10-32

 10 - 80 .010-.080 .250 .406 .038 .531 .380 .781 .630 .380 .250 / .256 E.
10 - 130 .080-.130 .594 .390 .843 .640 .390
10-180 .130-.180 .641 .390 .891 .640 .390
10-230 .180-.230 .703 .395 .953 .645 .395
10 - 280 .230-.280 .750 .395 1.000 .645 .395
10 - 330 .280-.330 .797 .385 1.047 .630 .385

线

 25-80 .020-.080 .332 .475 .058 .625 .450 .937 .760 .440 .332 / .388 问：
25 - 140 .080-.140 .687 .450 1.000 .760 .440
25 - 200 .140-.200 .750 .450 1.062 .760 .440
25 - 260 .200-.260 .812 .445 1.125 .755 .445
25 - 320 .260-.320 .875 .445 1.187 .755 .445
25 - 380 .320 -.380 .937 .445 1.250 .755 .445

5/16-18

 31 - 125 .030-.125 .413 .665 .062 .750 .505 1.187 .940 .550 .413 / .423 Z.
31-200 .125-.200 .875 .555 1.281 .960 .555
31 - 275 .200-.275 .937 .540 1.343 .950 .560
31 - 350 .275-.350 1.032 .560 1.437 .965 .570
31-425. .350-.425 1.125 .580 1.531 .985 .575
31-500. .425-.500 1.187 .565 1.593 .975 .580

3 / 8-16

 37-115 .030-.115 .490 .781 .088 .844 .585 1.281 1.020 .660 .490 / .500 12.5mm.
37-200 .115-.200 .938 .595 1.375 1.030 .670
37-285 .200-.285 1.031. .605 1.468 1.040 .680
37-370. .285-.370 1.125 .615 1.562 1.050 .690
37-455. .370 -.455 1.218 .630 1.656. 1.065 .710
37-540 .455 -.540 1.312 .635 1.750. 1.075. .715

1 / 2-13

 50-150 .050-.150 .625 .906 .085 .906 .605 1.328 1.030 .605 .625 / .635 5/8
50-250 .150-.250 1.031. .630 1.453 1.055 .630
50-350. .250-.350 1.141 .640 1.562 1.060 .640
50-450. .350-.450 1.250 .650 1.671 1.070 .650

第一个部分号码： 白划线之间的信： 零件号码示例:
“一种“ - 铝
“S.”——钢
“SS.“ - 不锈钢 - 430型
“纳米“ - 不锈钢 - 300型
“布尔“ - 黄铜		 “-“开放的圆形身体
“B.“结束了
“K.“键入
“H“全六角体

A10-80=铝，开口端

S25B140=钢，封闭端
A8K200.=铝，键控，开口结束
BR6KB120=黄铜，键控，封闭端
可提供公制螺纹、沉头和各种抛光。特殊尺寸可定做。
看页面W69用于设置工具。
