纽扣 - 打印-Gry20

屏幕截图2016-01-21在3.24.00 PM

线

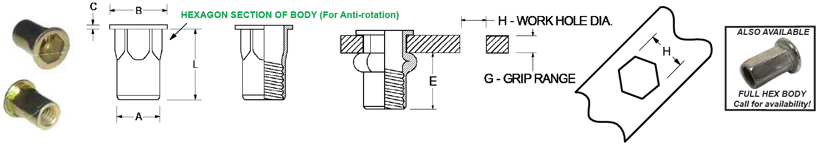

尺寸		 钢
黄锌
零件号		 握
范围		 身体直径
横跨公寓
（最大）		 法兰
直径		 法兰
高度		 长度
（最大）		 参考 推荐的
六角孔
横跨公寓
+006 / -.000
“G“ “一种“ “B.“ “C“ “L.“ “E.“ “H“

6-32

 SH6-32-80 .020-.080 .249 .375 .027 .385 .295 .250
SH6-32-130 .080-.130 .249 .375 .027 .435 .295 .250

8-32

 SH8-32-80 .020-.080 .249 .375 .027 .385 .295 .250
SH8-32-130 .080-.130 .249 .375 .027 .435 .295 .250

10-32

 SH10-32-130 .020-.130 .280 .390 .027 .435 .275 .281
SH10-32-225 .130-.225 .280 .390 .027 .535 .275 .281

1/4-20

 SH250-20-165 .027-.165 .374 .510 .030 .585 .400 .375
SH250-20-260 .165-.260 .374 .510 .030 .685 .400 .375

5/16-18

 SH312-18-150 .027-.150 .499 .655 .035 .685 .530 .500
SH312-18-312 .150-.312 .499 .655 .035 .845 .515 .500

3 / 8-16

 SH375-16-150 .027-.150 .499 .655 .035 .685 .530 .500
SH375-16-312 .150-.312 .499 .655 .035 .845 .515 .500

M4-.70

 SH4-70-2.0. 0.50-2.00 6.35 9.53 0.68 9.78 7.49 6.35
SH4-70-3.3. 2.00-3.30. 6.35 9.53 0.68 11.05 7.49 6.35

M5-.80

 SH5-80-3.3. 0.50-3.30. 7.10 9.91 0.68 11.05 6.99 7.14
SH5-80-5.7 3.30-5.70 7.10 9.91 0.68 13.59 6.99 7.14

M6-1.0

 SH6-10-4.2 0.70-4.20 9.50 12.96 0.76 14.86 10.16 9.53
SH6-10-6.6. 4.20-6.60 9.50 12.96 0.76 17.40 10.16 9.53

M8-1.25

 SH8-125-3.8 0.70-3.80. 12.70 16.64 0.89 17.40 13.46 12.70
SH8-125-7.9 3.80-7.90. 12.70 16.64 0.89 21.46 13.08 12.70

M10-1.5

 SH10-15-3.8 0.70-3.80. 12.70 16.64 0.89 17.40 13.46 12.70
SH10-15-7.9 3.80-7.90. 12.70 16.64 0.89 21.46 13.08 12.70

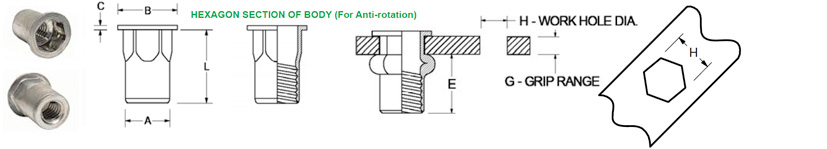

线
尺寸

铝
零件号

握
范围

身体
直径
横跨公寓
（最大）

法兰
直径

法兰
高度

长度
（最大）

 参考

推荐的
六角孔
横跨公寓
+006 / -.000
“G“ “一种“ “B.“ “C“ “L.“ “E.“ “H“
6-32 AH6-32-80. .020-.080 .249 .375 .027 .385 .295 .250
AH6-32-130 .080-.130 .249 .375 .027 .435 .295 .250
8-32 AH8-32-80 .020-.080 .249 .375 .027 .385 .295 .250
AH8-32-130 .080-.130 .249 .375 .027 .435 .295 .250
10-32 AH10-32-130 .020-.130 .280 .390 .027 .435 .275 .281
AH10-32-225 .130-.225 .280 .390 .027 .535 .275 .281
1/4-20 AH250-20-165. .027-.165 .374 .510 .030 .585 .400 .375
AH250-20-260 .165-.260 .374 .510 .030 .685 .400 .375
5/16-18 AH312-18-150 .027-.150 .499 .655 .035 .685 .530 .500
AH312-18-312. .150-.312 .499 .655 .035 .845 .515 .500
3 / 8-16 AH375-16-150 .027-.150 .499 .655 .035 .685 .530 .500
AH375-16-312. .150-.312 .499 .655 .035 .845 .515 .500

M4-.70 AH4-70-2.0. .50-2.00 6.35 9.53 .68 9.78 7.49 6.35
AH4-70-3.3. 2.00-3.30. 6.35 9.53 .68 11.05 7.49 6.35
M5-.80 AH5-80-3.3. .50-3.30 7.10 9.91 .68 11.05 6.99 7.14
AH5-80-5.7. 3.30-5.70 7.10 9.91 .68 13.59 6.99 7.14
M6-1.0 AH6-10-4.2. .70-4.20 .9.50 12.96 .76 14.86 10.16 9.53
AH6-10-6.6. 4.20-6.60 .9.50 12.96 .76 17.40 10.16 9.53
M8-1.25 AH8-125-3.8. .70-3.80 12.70 16.64 .89 17.40 13.46 12.70
ah8-125-7.9 3.80-7.90. .12.70 16.64 .89 21.46 13.08 12.70

封闭式终端风格也可用。请致电可用性。
